Pneumatic Fitting Supplier

Pneumatic Fitting Supplier

M B Enterprise offers plastic push in fittings, which is also called Pneumatic Fittings for it usually being used in pneumatic systems. It is made with a stainless steel collect design that ensures high quality clamping with various types of tube such as nylon tubes, polyethylene tubes and polyurethane tubes. It can be easily connected or disconnected by one touch and is used for a wide variety of models to meet all demands. And its oval sleeve also makes it possible to apply and remove the tube easily in confined space. Meanwhile, over 50 different models in imperial; metric sizes and hybrid are also available. We are one of well-known Pneumatic Fitting Supplier in Kolkata industry.

Product Details

  • Type: air hose fittings/push fit/Push to connect Tee+elbow+yspliter+Straight+valve+Manifold/
  • Size: 8mm
  • Fluid Admitted: Air Vacuum Water liquifit push to connect fitting kits quick connect t fitting water setup irrigation lines (no freezing)
  • Working Pressure: 0-1.0MPa | 0-150psi/Applicable
  • Tube: PU / PA / PE / PVC
  • Proof Pressure: 3.0Mpa | 435psi.
  • Seal O-ring: NBR/ Lock
  • Claw: Stainless Steel(SUS)/
  • Body: Plastic(PET)
  • Working Temperature: 0-60°C | 32~140°F/Negative
  • Pressure: -100Kpa | -29.5 In Hg

Features

  • Designed for Polyurethane or Nylon tubing.
  • Quick and reliable connections.
  • Reusable: multiple connections / disconnections.
  • Convenient elliptical / round sleeve configuration.
  • Metallic body made of non-corrosive Nickel-plated Brass.
  • Pre-coated threads are ready to use without additional sealing.
  • Outside (and Inside where applicable) hexagonal wrench tightening.
  • Conform ISO7.1, BS21, DIN2999 standard.
  • Item: Push Male Connector
  • Thread Size: 1/8 Inch
  • Pipe Size: 4mm, 6mm, 8mm, 10mm, 12mm
  • MoC: Metal Body (Chromed) with PBT Cap
  • Fluid: Air
  • Operation: Push-In
  • Application: In all Pneumatic Components
  • For other Thread Sizes: M5, M6, 1/4″, 3/8″, 1/2″

Specifications

Operating Pressure0 – 150 PSI       0 – 990 kpa
Operating Temperature0 – 60 °C         32 to 140°F
ApplicationAir, water
Recommended Tubing MaterialPolyurethane, Nylon, Polyethylene, and Polypropylene

Description

  • Quick & Easy – Press the cap and slide the pipe inside, release after the pipe is in the connector. To disjoint, press the cap and pull the pipe outside
  • Tube Size – 6mm OD & Thread Size – 1/8, 1/4, 3/8, 1/2 Inch BSP Male
  • Colour – Blue Cap and Zinc Plated (Silver)
  • Push Fitting Material – Metal & Brass Sleeve
  • Allen Keyhole Design

Types of Pneumatic Fitting

Male Type P U Fitting Supplier
Male Type P U Fitting
Female Type P U Fitting
Female Type P U Fitting

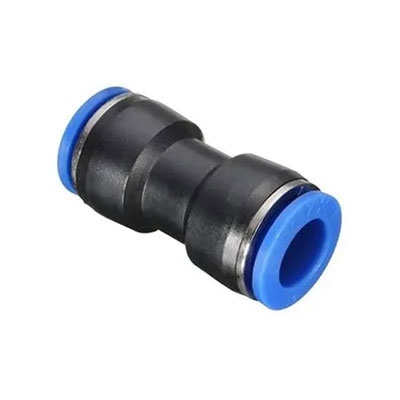

Equal Type P U Fitting Supplier
Equal Type P U Fitting
Unequal Tee Connectors Suppliers
Unequal Type P U Fitting
Branch Union Supplier
Branch Union
Planking Plug Supplier
Planking Plug
